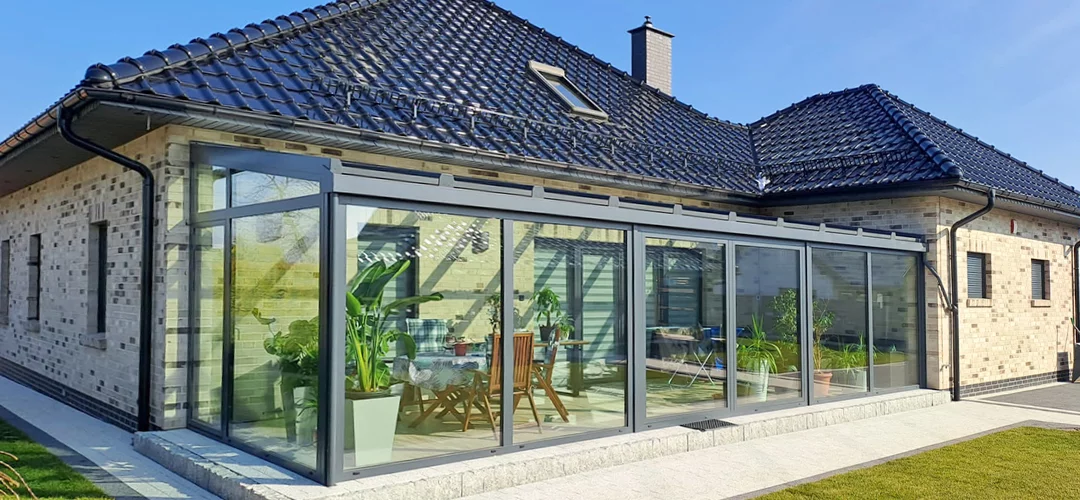

A winter garden is an ideal solution for expanding your living space or creating a place to relax. This system is ideal for harmoniously connecting your indoor space with the nature of your outdoor environment.
Large glass surfaces let in plenty of natural light, bringing solar energy into the interior, which contributes to the feeling of warmth, especially during the cold winter months when the benefits of a winter garden come to the fore.
DIFFERENT OPTIONS OPENINGS
COMPATIBLE WITH FEAL WINDOW AND DOOR SYSTEMS
EXCELLENT WEATHER RESISTANCE
Product description
The Winter Garden system is intended for the construction of self-supporting, fully glazed, thermally insulated structures made of aluminum profiles. The system enables the integration of various types of openings, including outward-opening, parallel opening and roof windows.

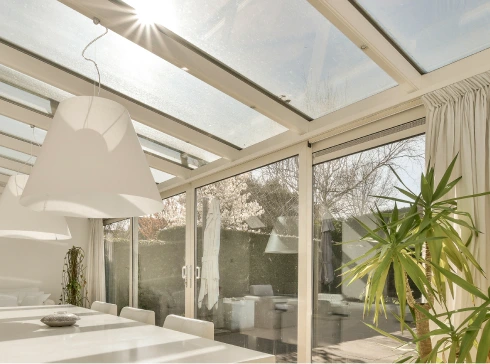

Profile design
They are available in various depths of vertical and horizontal profiles with a visible profile width of 50 mm. This variety allows adaptation to the aesthetic and functional requirements of each project.
Drive system
The system uses aluminum profiles with a thermal break, which ensures excellent thermal insulation. This feature allows for a comfortable stay in the winter garden area all year round.

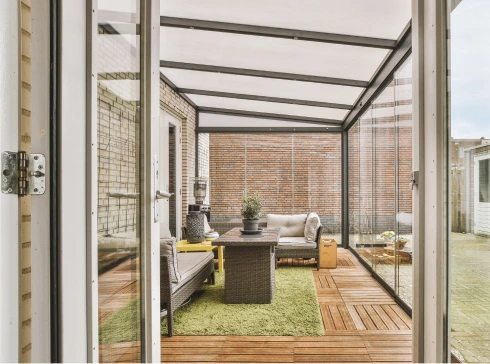

Sealing
The system uses EPDM seals for superior water tightness and durability.
Technical specifications of fixed pergolas

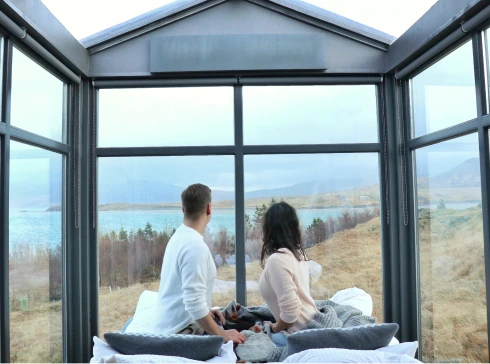

Thermal insulation
- vertical depth: 120, 140, 160, 200 mm
- horizontal depth: 88, 118, 138, 158 mm
- depth of auxiliary horizontal: 88, 118, 138, 158 mm
- visible profile width: 50 mm
- filling depth: 30 mm
Air – Water – Wind
- Air permeability: EN 12207
- waterproofness: EN 12154
- resistance to wind impact: EN 12210
Sound insulation
- noise protection: EN ISO 717-1
Quality control
- calculation of Uf coefficient: DIN EN ISO 10077-2
- surface treatment: DIN 17611
- quality control: DIN EN ISO 9001
Materials
- base material: EN AW-6060
- sealing material: EPDM
Burglar resistance
- burglar resistance: EN 1627
